Comprehensive Guide to Custom Wiring Harness

Understanding Custom Wiring Harnesses

Wiring harnesses are an arrangement of cables that make it easier to connect multi-port devices and systems. They are broadly categorized into two types: standard and custom wiring harnesses.

What is a Custom Wiring Harness?

A custom wiring harness is designed to meet a client’s specific needs. Like standard harnesses, it includes essential components such as cables (conductors and insulation), connectors, sheathing, ties, clips, grommets, bushings, tubing, and labels. Its design and component arrangement, however, are uniquely customized to fit its intended application.

Standard Wiring Harness vs Custom Wiring Harness

Standard wiring harnesses, also known as generic or off-the-shelf harnesses, are versatile and can accommodate a wide range of applications. While widely used, they may fall short in scenarios requiring higher performance or specialized features.

Custom wiring harnesses, on the other hand, are engineered for reliability and efficiency in specific use cases. Their tailored design ensures they meet rigorous standards, making them the preferred choice for mission-critical applications.

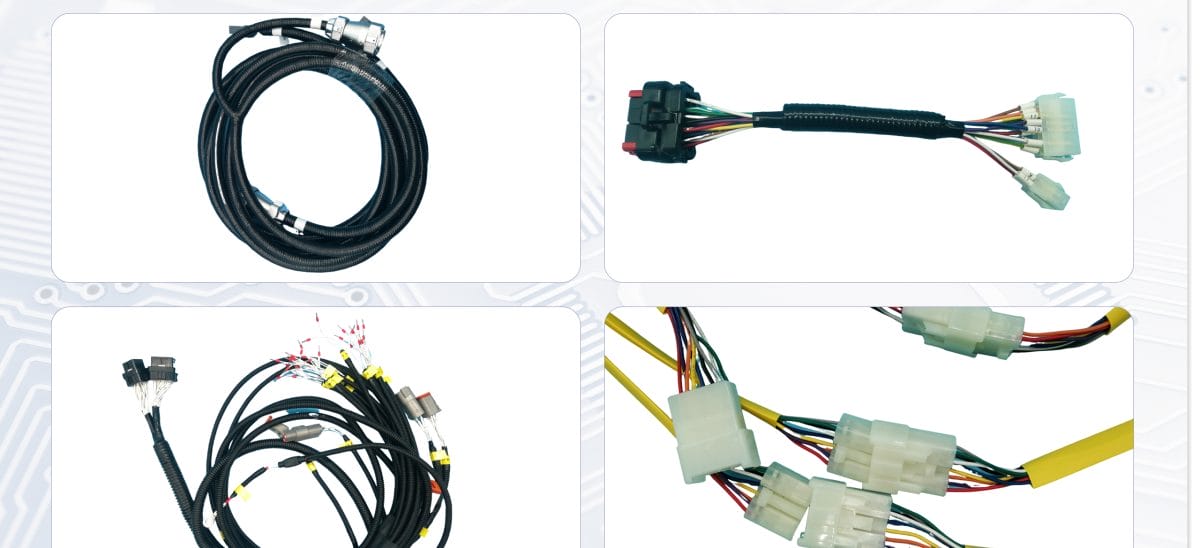

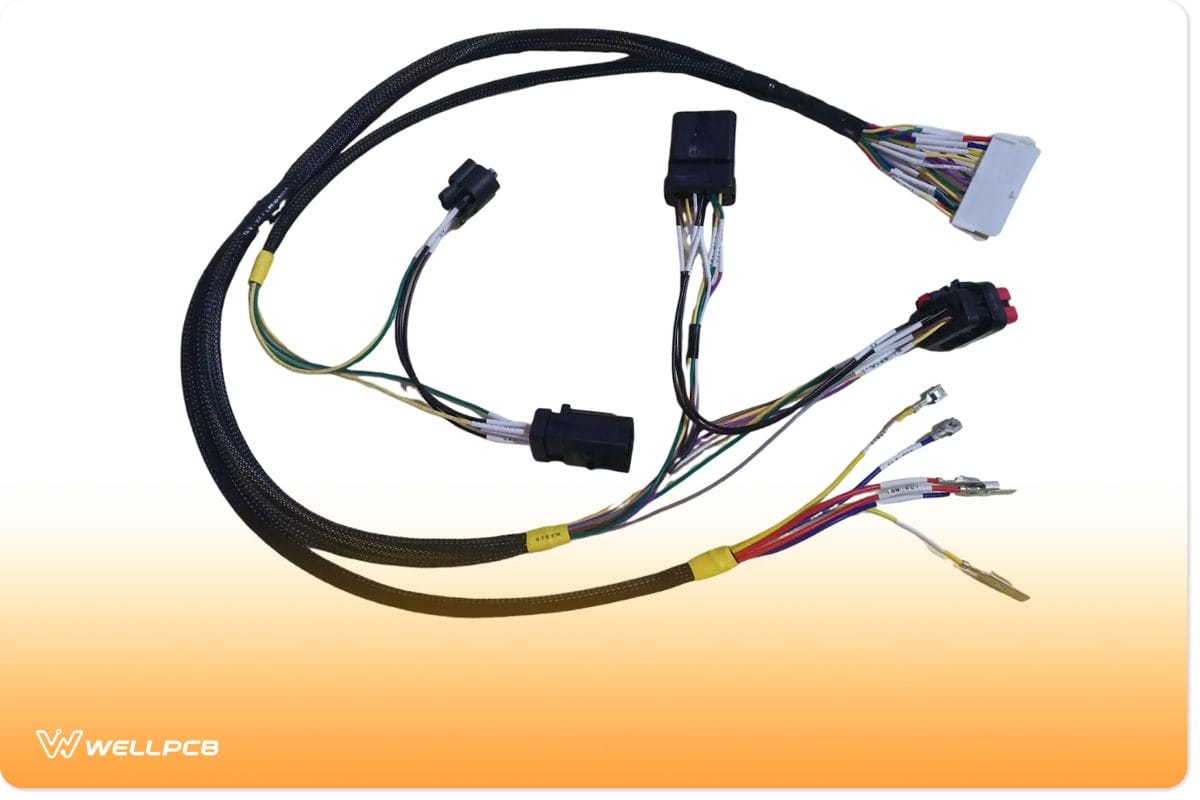

For example, Electrocardiogram (EKG) machines require precise and accurate readings. Standard wiring harnesses cannot be relied upon for such accuracy, as they typically haven’t undergone the necessary design steps or rigorous testing. Custom wiring harnesses, built and tested for such precision, provide the reliability essential in these circumstances.

The Role of Custom Wiring Harnesses in Modern Engineering

The rise and adoption of generative artificial intelligence (Gen AI) is a notable trend in modern engineering. Custom wiring harnesses play a significant role in how this technology works.

Custom Wiring Harnesses Driving Innovation Through AI

AI provides quick solutions to difficult problems and automates repetitive tasks. To achieve this, modern AI relies on large, power-hungry data centers. Many (if not all) of these data centers require tailored wiring solutions.

As AI continues to advance, so will its usage of custom wiring harnesses. This is because wiring harnesses provide more efficient cable management, which facilitates high-speed data transmissions and comprehensive EMI shielding.

In other words, engineers can use custom harnesses to optimize data center performance.

How Electrical Wiring Harnesses Give Organizations a Competitive Edge

There are currently over 9,000 AI companies in the USA alone. By using wire harnesses to streamline their data centers, organizations can increase key performance benchmarks while improving power efficiency.

With such pivotal use cases, the global wire harness market is forecast to reach USD 58.4 billion by 2030. We suspect that this growth will be even greater than expected, especially with increasing demand for electric vehicles.

Key Components of Custom Wiring Harnesses

While they may be configured differently, most custom wiring harnesses have similar components. These include:

Electrical Wiring Harness Cables

Cables typically consist of a conductor (wire) and insulation. A custom wiring harness may include various types of cables to suit specific applications, such as:


• Single conductor cables
• Multi-conductor cables
• Twisted pair cables
• Coaxial cables
• Ribbon cables
• Shielded cables
• Fiber optic cables
• Flat cables
• Braided cables

Custom cable assemblies are often fine-tuned to meet specific use-case requirements.

Connectors and Terminals

Connectors and terminals join the different components, systems, and devices within a custom wiring harness. For example, RJ45 connectors enable Ethernet cables to interface with network devices.

Connector Types

The following connector types are often used in custom wiring harnesses:

• Plug connectors
• Socket connectors
• Crimp connectors
• Solder connectors
• Push-in connectors
• Coaxial connectors
• Circular connectors
• Rectangular connectors
• Terminal blocks

Terminal Types

Terminals ensure secure and reliable electrical connections. Common terminal types include:

• Crimp terminals
• Solder terminals
• Screw terminals
• Push-in terminals
• Quick-disconnect terminals

Manufacturers often insulate these terminals for enhanced safety and protection against electrical shorts.

Insulation and Protective Coverings

Insulation and protective coverings ensure the reliability and durability of a wiring harness. Common materials include:

• Polyvinyl chloride (PVC)
• Fluorinated ethylene-propylene (FEP)
• Polyethylene (PE)
• Polypropylene (PP)
• Polyurethane (PUR)
• Nylon
• Thermoplastic rubber (TPR)
• Silicone
• Fiberglass

By incorporating protective coverings, manufacturers can ensure their wiring harnesses are robust, reliable, and safe for use in various applications.

Shielding and Grounding

Proper shielding and grounding are critical for maintaining signal integrity, preventing data corruption, and ensuring safe, reliable operation in environments with high electromagnetic interference (EMI).

Common shielding and grounding techniques include equipment grounding conductors, shield grounding, bonding, grounding electrode systems, and isolated grounding. These measures ensure the harness performs reliably while meeting stringent safety standards.

The Manufacturing Process of Custom Wiring Harnesses

Creating custom wiring harnesses involves several important steps to ensure precision, quality, and reliability.

1. Initial Consultation and Assessment of Requirements

The process begins with the manufacturer’s engineering team consulting the client to define the project’s goals and requirements. This includes analyzing the technical specifications, environmental conditions, and application needs.

Next, the manufacturer performs a feasibility study to assess the project’s practicality, technical demands, design considerations, and optimal material selection.

2. Material Selection

Manufacturers carefully select materials based on specific properties:

• Durability: Resistance to environmental factors and mechanical strength.
• Flexibility: Bend radius and flex life.
• Application requirements: Weight, compactness, electrical and thermal properties, compliance with standards.
• Cost-effectiveness: Material cost and ease of manufacturing.

These properties guide customization, enabling manufacturers to tailor wires, insulation, connectors, and shielding to meet unique specifications.

Customization Options

The manufacturer can use these properties and values to customize each element of the wire harness. Common customization options include:

• Wires: Colors, gauge specifications, length customizations, and processing options.
• Insulation: Material selection, thermal properties, chemical resistance, and environmental sealing.
• Connectors: Material customization, form and fit, cable arrangements, current ratings, and plating options.
• Shielding: Material selection, shielding types, profile customization, and environmental sealing.

3. Design and Engineering

The design and engineering phase begins with engineers using CAD software to create detailed schematics, 3D models, and project plans. These include design schematics, bills of materials (BOM), wire lists, and assembly instructions, ensuring all aspects of the custom wiring harness are accurately documented.

Simulation tools are employed to virtually test designs, optimizing performance and identifying potential issues before production. Additionally, manufacturers may produce physical prototypes to provide clients with a tangible preview of the custom wiring harness. These prototypes, along with the design documentation, are then presented for client review and approval.

4. Fabrication and Assembly

Fabricating custom wiring harnesses involves several precise techniques:

• Wire cutting: Shortens wires according to design specifications.

• Wire stripping: Removes insulation from the end of the cables to prepare for crimping or soldering.
• Crimping: Attaches terminals to wires using crimping tools.
• Soldering: Permanently bonds the wires to the terminals and connectors.
• Wire routing and bundling: Organizes wires for functionality and aesthetics.
• Insulation and protective coverings: Adds additional layers for protection.
• Labeling and identification: Marks and labels the components of the wire harness for documentation and tracking.

Most of the above steps are carried out by automated machinery and tools. For instance, manufacturers often use automatic crimping machines to connect wires to terminals and connectors.

5. Quality Control and Testing

Quality control begins when the manufacturer inspects the raw materials and continues throughout the manufacturing process. During fabrication, for instance, soldering temperature, stripping measurements, crimping pressure, and insulation application are all checked to ensure specifications are met.

The manufacturer then performs final inspections to ensure the correct flow of electricity.

Testing Methods for Custom Wiring Harnesses

Key testing methods include:


• Continuity testing
• Insulation resistance testing
• High voltage testing
• Functionality testing
• Environmental testing

6. Packaging and Delivery

Manufacturers can use the following techniques to securely package harnesses for delivery:

• Custom-fit packaging: Prevents movement with fitted trays or containers.
• Protective wrapping: Includes materials like bubble wrap, foam, and plastic wrap.
• Reinforced boxes: Adds extra durability for shipping.
• Palletization: Bundles multiple harnesses for secure storage or transport.

Manufacturers often combine these methods to ensure maximum safety, such as wrapping harnesses in bubble wrap before placing them in pallets.

Efficient Logistics for Custom Wiring Harnesses

Labels and documentation ensure correct handling during shipping and delivery. Manufacturers can ensure timely, reliable delivery by optimizing transportation routes, enhancing supply chain visibility, managing inventory, and working with reliable partners.

Applications of Custom Wiring Harnesses in Various Industries

Custom wiring harnesses are vital in several industries.

Automotive Industry

Automakers rely on custom wiring harnesses for power distribution and signal transmission. Their precise fit in confined spaces minimizes the risk of abrasions and enhances system performance.

Aerospace Industry

Aerospace wiring harnesses must meet strict standards for reliability, environmental resistance, weight efficiency, and space constraints. Custom wiring harnesses are engineered and rigorously tested to meet these stringent requirements.

Industrial Machinery

Custom wiring harnesses improve industrial machinery by providing optimized design, flexibility, scalability, and streamlined installation and maintenance. This ensures enhanced performance and reliability in complex industrial systems.

Standards and Compliance in Custom Wiring Harness Manufacturing

Custom wiring harness manufacturers must follow and comply with the appropriate industry standards to ensure safety and quality.

Industry Standards Overview

The key standards that manufacturers should follow include:

• IPC/WHMA–A-620: Provides an overview of the requirements and acceptance criteria for cable and wire harness assemblies.

• ISO 9001: A recognized international standard focusing on general quality of all manufacturing processes.
• IATF 16949: A global quality standard for the regulation of parts in the automotive industry.
• IEEE Standards: Provide guidelines for electrical and electronic products, methods, and services.

Best Practices for Designing and Manufacturing Custom Wiring Harnesses

To maintain compliance and deliver high-quality products, manufacturers can implement the following practices:

Modular Design

This approach involves breaking down the custom wiring harness design into smaller, detachable sections. This simplifies repair, maintenance, and troubleshooting by allowing specific sections to be replaced or repaired without affecting the entire system.

Standardized Components

Using standardized, widely available parts reduces complexity and costs. It also simplifies sourcing of replacement parts and enhances overall reliability.

Manufacturing Best Practices

Select high-quality materials that meet the required specifications and requirements. These materials must undergo thorough testing and inspection. Keep detailed records of all materials to trace and address any issues efficiently.

Clear Labeling and Documentation

Clear labels help manufacturers and clients identify wires, connectors, and components, which simplifies installation, maintenance, and troubleshooting. Well-written installation guides provide further clarity for end-users.

Common Challenges in Custom Wiring Harness Manufacturing and Solutions

Custom wiring harness manufacturing often presents unique challenges. Here’s how manufacturers can address them:

Managing Complexity in Design

You can manage complexity by implementing modular design and using standardized components.

Ensuring Durability and Reliability

Use materials like Polyimide (PI), Polytetrafluoroethylene (PTFE), or cross-linked polymers that can withstand high temperatures. In addition to implementing proper shielding, use sealed or over-molded connectors to protect against water, dust, and contaminants.

Balancing Cost with High Performance

Balancing cost constraints with the need for high performance in custom wiring harness manufacturing is a common challenge. You can address this through:

• Optimized material use: Avoid over-specifying materials to balance performance and cost.
• Bulk purchases: Leverage volume discounts for cost-effective material procurement.
• Alternative materials: Where possible, substitute more economical materials, such as aluminum wires instead of copper.

Conclusion

This guide provides a comprehensive overview of custom wiring harnesses, from their design and manufacturing processes to addressing common challenges. Understanding these aspects can help you differentiate between high-quality harnesses and substandard ones.

Partnering with a well-equipped wire harness designer and manufacturer, like WellPCB, ensures access to industry-leading solutions that prioritize quality and innovation.

Contact WellPCB today to learn more about our cutting-edge wire harness design and manufacturing services.

FAQ

What is a custom wiring harness and how does it differ from standard harnesses?

Custom wiring harnesses meet specific requirements of a particular application, whereas standard harnesses are pre-made and intended for general use.

Which industries can benefit from WellPCB’s custom wiring harness solutions?

Industries such as automotive, aerospace, industrial machinery, medical devices, telecommunications, and consumer electronics can greatly benefit from our custom wiring harness solutions.

What customization options are available for wiring harnesses?

Customization options for wiring harnesses include selecting specific wire types, insulation materials, connectors, shielding, labeling, and routing paths to meet unique application requirements.

How do custom wiring harnesses enhance product performance and reliability?

Custom wiring harnesses enhance product performance and reliability by ensuring precise fit, optimal routing, and tailoring electrical characteristics to the application’s needs. This minimizes signal loss, reduces electromagnetic interference, and ensures efficient power distribution.

What are the main processes involved in designing and manufacturing custom wiring harnesses?

The main processes include understanding requirements, creating schematics, selecting materials, cutting and stripping wires, assembling components, conducting testing, and performing final inspections.
